Size: 1/2 inch to 4 inch for standard ASME B16.5,
Pressure: Class 150, Class 300, Class 600, Class 900, Class 1500 and Class 2500.
Sealing face: RF (raised face), RTJ (ring joint face), TG (tongue and groove face) etc.

The specification of Socket Welding Flange ASTM A105 ASME B16.5

The surface treatment of Socket Welding Flange

The surface treatment of Socket Welding Flange includes black painting, yellow painting, anti-rust oil, and epoxy. Generally if the customers don’t have special request for the surface, anti-rust oil is commonly used.

Why choose us to buy carbon steel concentric pipe reducer?

Our company have been passed several certificates including ISO9001: 2008, ISO14001, OHSAS18001, CE certificate, one member of CNPC, Sinopec, and CNPC. We welcome your inquiry timely sales@metleader.com .

Socket Weld Flanges were initially developed for use on small-size high pressure piping. The connection is made as the pipe sits inside of the cupped inlet or “Socket” of the flange. A fillet weld at the outside of the flange binds the two pieces and ensures a seal.

150lbs Stainless Steel 304 Socket Weld Flange base information:

Model NO.: 1/2′–72′

Type: Welding Flange

Structure: Lateral

Sealing Surface: FM

Surface: Oil or Painted

Brand: Metleader

Origin Place: Cangzhou City ,Hebei China(Mainland)

Transport Package: Pallet, Wooden Case

Origin: Cangzhou, China

Standard: ANSI, DIN, GB, JIS

Material: Stainless Steel

Connection: Welding

Manufacturing Way: Forging

Certificate: ISO,API,BV

Pressure: Any Pressure

Trademark: ST

Specification: API, ISO

HS Code: 730793

Our flanges are produced according to standard strictly.

Our factory is specializes in manufacturing carbon steel seamless pipes and pipe fittings

And forged flanges. Welcome to visit and cooperation.

1. Standard: ANSI, DIN, JIS, BS
2. Size: 1/2″- 72″
3. Pressure: A. Class150/300/600/900/1500 b. JIS 5K/10K/16K20K c. PN6/10/16/25/40
4. Type: Flange, forged flange, plate flange
5. Material: ASTM A105, Rst37.2, C22.8, carbon steel, Alloy steel, stainless steel
6. Surface: Black painted, oil, galvanizing
7. Special design available

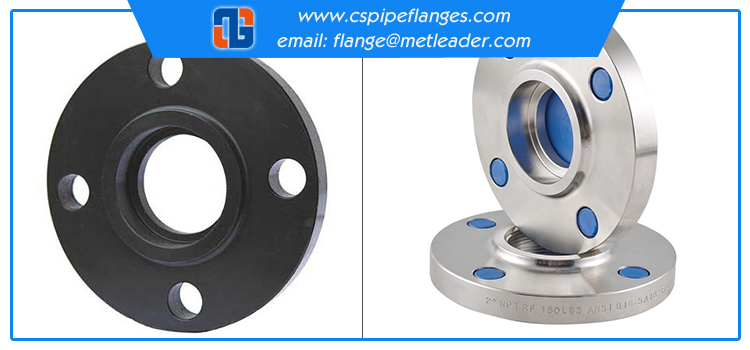

A105 carbon steel socket weld flange is one of material of carbon steel.the carbon steel socket weld flange has another model, such Q235B，A3、10#、#20,Q345B and so on.The socket weld flange has different continue face: RF,MFM,TG,RJ. PN<=10.0MPa,DN<=40.
The socket welding flange refers to the flange welded to the pipe end and the outside side by inserting the end of the pipe into the blue ring ladder. There are two types with neck and without neck. The flanges with neck flanges are good in rigidity, small in welding deformation and good in sealing, and can be used for occasions where pressure is 1.0~10.0MPa. B flange for container is also a socket welding flange, which is used for occasions with high sealing requirements. When designing, socket welding flange can be checked according to integral flange.

Advantages and drawbacks of Socket Weld fittings
1.The pipe needn’t be beveled for weld preparation. Temporary tack fastening is not any required for alignment,
because in theory the fitting ensures correct alignment.
2. The weld metal cannot penetrate into the bore of the pipe.
3. they will be employed in place of rib fittings, therefore the risk of leak is far smaller. Radiography isn’t
practical on the fillet weld; thus correct fitting and fastening is crucial. The fillet weld could also be inspected
by surface examination, magnetic particle (MP), or liquid penetrant (PT) examination strategies.
4. Construction prices ar under with butt-welded joints because of the shortage of exacting fit-up needs and
elimination of special machining for butt weld finish preparation.

Detail information of socket weld flange
Size: 1/2” to 60”, DN 12mm to DN 1500mm
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ
Material of Socket Welding Flanges:
Cabon steel: A105, A350 LF2

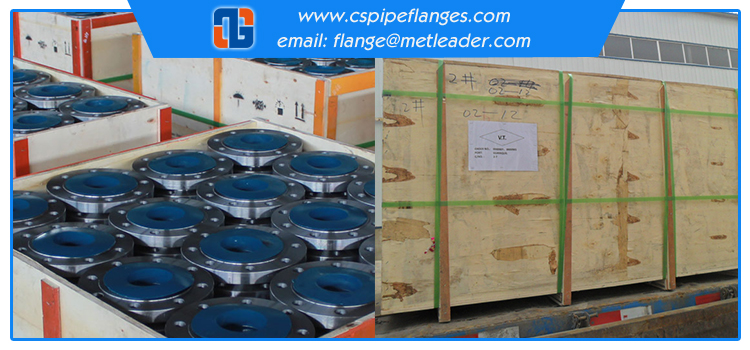

Packing: plywood case and plywood pallet
Standards, Dimensions & Weight
The Socket Welding Flange is attached to the pipe by a fillet weld around the hub of the flange. An optional internal weld may be applied in high stress applications.
ASME/ANSI B16.5 Class 150 SW/ Class 300/ Class 600/ Class 1500


Do you want to know Different of weld neck flange and slip on flange?
Welcome you contact us with email flange@metleader.com
Expect socket weld flange and slip on flange we also has blind flange hreaded flange and some pipe fittings. We can provide all pipe fittings of the pipeline construction.
